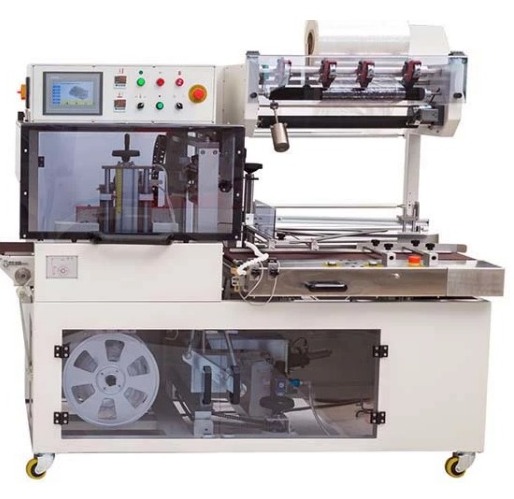

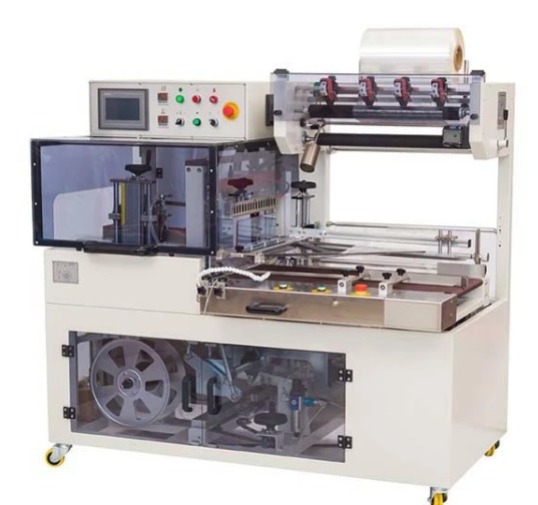

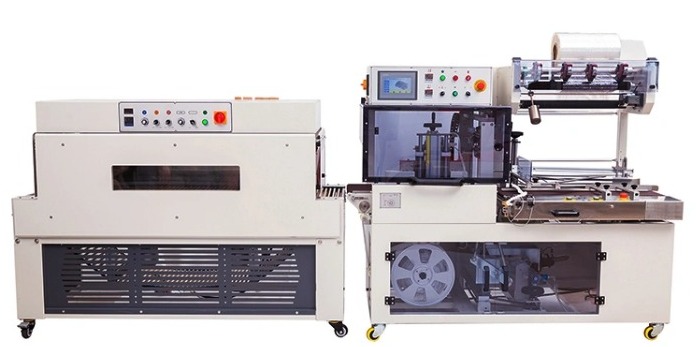

Automatic Side Sealer & Shrink Tunnel
The automatic side sealer is an integrated automatic production line. Products are fed by the conveyor into the plastic sheeting and cut automatically. It has a PLC program control as well as a specially designed protector on the cutting head.
Product Inquiry
| Model | DQL4518S (Auto L Sealer | BS-D4520 Shrink Tunnel |
| Max packing size（㎜） | L ∞， W+2H≤450，H≤150 | W450×H200 |
| Max sealing size（㎜） | W450 | / |
| Power（KW） | 1.4 | 8.5 |
| Capacity | 0-35 pcs/min | 0-15m/min |
| Voltage | 220V 50/60HZ | 380 v 50HZ/60HZ |
| Sealing temperature | 180℃—250℃ depends on thickness of film and environment temperature | / |
| Thickness of film(mm) | 0.015－0.10 | / |
| Air pressure(Kg/cm2) ) | 5 | / |
| Packing material | POF PVC | / |
| Machine weight(㎏) | 340 | 210 |
| Machine size（㎜） | L1700×W1000×H1500 | External L1600×W730×H1400 |
| tunnel（L1200XW450XH200） |
